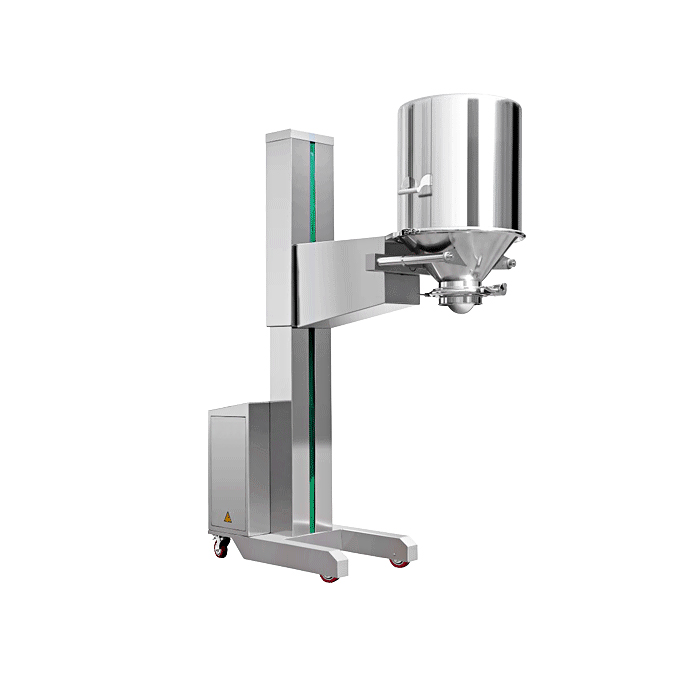

LHY Moveable Drum Lifting Column

Senieer LHY series Moveable Drum Lifting Column also called LHY series Drum lifter, LHY series Movable Drum Lifting Column is mainly used in the solid dosage forms production procedure for transferring and discharging solid materials. It is worked with high shear mixer, capsule filling, tablet press, packaging machine, etc. It is also widely used in such industries as medicine, food, health food and chemical industry.

LHY Moveable Drum Lifting Column

The Senieer LHY Series Moveable Drum Lifting Column are designed to streamline material handling in production. It consists to moveable trolley, column, operation box, and lifting system. The drum is first secured using cone adapter. Pressing raise button lifts drum to a required height. Once positioned, invert button rotates drum into 180° to align with Pharma Lifter. The equipment then moved to a designated processing area. Pressing lower button is lowers drum to the required position, allowing butterfly valve to be open for the next processing step.

LHY Moveable Drum Lifting Column : Product Feature

Application

Application of Senieer equipment in pharmaceutical industry

Pharmaceutical

Application of Senieer equipment in nutraceutical industry

Nutraceutical

Application of Senieer equipment in food industry

Food

Application of Senieer equipment in chemical industry

Chemical

Application of Senieer equipment in cosmetic industry

Cosmetics

Senieer icon

Animal

Other Models Of Pharma Lifter

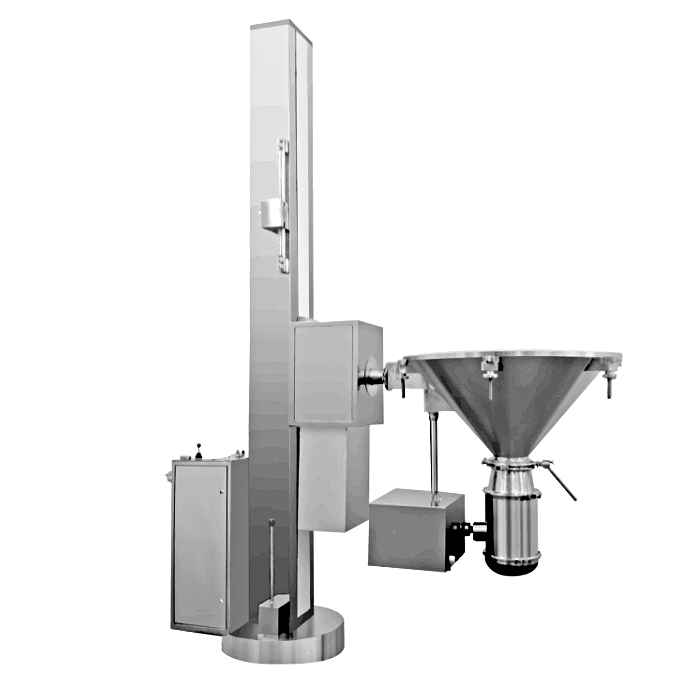

LHM Pharma Lifter
LHM

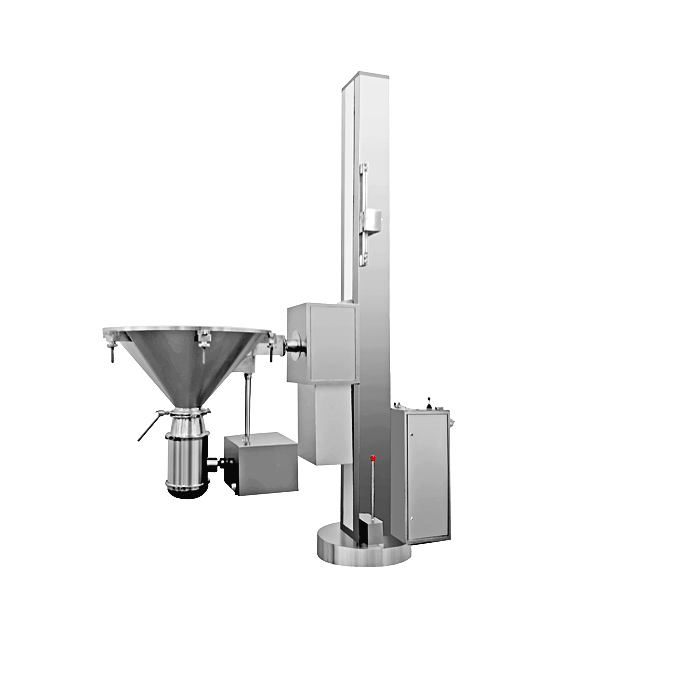

LHT Pharma Lifter For FBD Bowl
LHT

Technical Parameters Of LHY Moveable Drum Lifting Column

Lifting Column Parameter (LHY)

LHY Moveable Drum Lifting Column : Product Description

Senieer LHY series Moveable Drum Lifting Column also called LHY series Drum lifter, LHY series Movable Drum Lifting Column is mainly used in the solid dosage forms production procedure for transferring and discharging solid materials. It is worked with high shear mixer, capsule filling, tablet press, packaging machine, etc. It is also widely used in such industries as medicine, food, health food and chemical industry.

Senieer LHY series Moveable Drum Lifting Column is mainly composed of moveable trolley, column, operation box and lifting system. When it works, lock first the drum with the cone adapter, then press raise button to raise the drum. When it is raised in position, press invert button to invert it 180°and align the Pharma Lifter. Push the equipment to the process position of the equipment to be connected. Press the lower button automatically lower it to the required position, open the butterfly valve, and realize the next processing procedure.

Senieer LHY series Drum lifter is successfully designed on the basis of a wide research, absorption and digestion of foreign advanced technology. It has such features as reasonable structure, stable performance, convenient operation no dead angle and no exposed screws. To ensure a safe production, it is also designed with device avoiding misoperation of the butterfly valve which easy to dismantle and wash. Consequently, LHY series Moveable Drum Lifting Column effectively controls powder dust or cross contamination.

Senieer LHY series Drum lifter optimizes production processes, and fully meets the requirements for medicine production in cGMP.

Even if your design is customized, Senieer’s ability and knowledgeable workers will help you finish it in confirmed time.

To know more about Senieer, please contact us right now.

pharma lifter and powder

Current Product:LHY Moveable Drum Lifting Column

Senieer LHY Series Drum Lifter is made to provide material handling with ease also efficiency. With high-tech also ensures smooth operation using the strong structure and stable performance. Our simple design free of hard-to-reach corners also exposed screws makes it easy to clean.

For safety, it is provided with intelligent locking mechanism to prevent accidental opening of the valve. Quick-release design for simple disassembly and easy washing, speedy maintenance.

Boost your production efficiency with the Senieer LHY Drum Lifter: easy to use, safe, and long-lasting!
